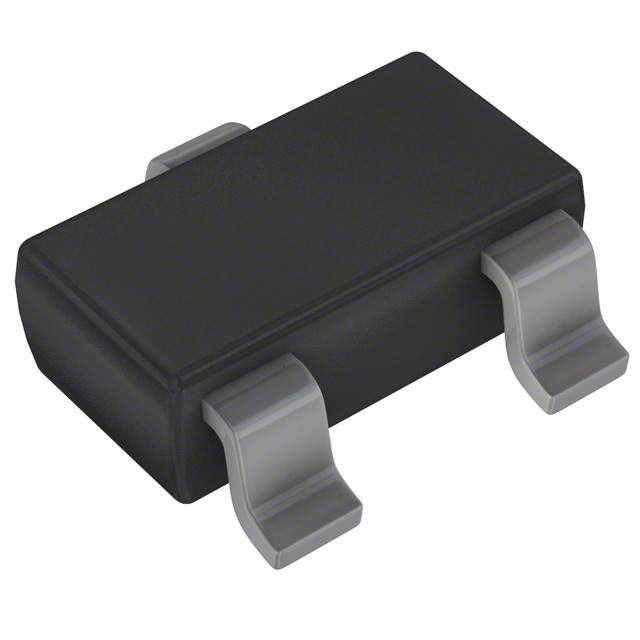

ZHCS506TA - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC9445266
Category:
Schottky Diode
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
ZHCS506 Series 500mA 60V 40uA High Current Schottky Barrier Diode - SOT-23
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZHCS Series diodes provide excellent high performance specifications in miniature surface mount packages. An optimized geometry / process with superior packaging gives an unmatched IF/VF performance and PDcapability, enabling significant space savings, circuit efficiencies and cost effective solutions to larger package options.
Features
VR40V and 60V types
Low forward voltage
High current capability
Fast recovery time
Miniature package size options
Very low VFat high temperature operation (above 85°C) (ZLLS series) complement the existing range of ZHCS series (optimized for operation at lower temperatures)
Applications
Forward and flyback converters
Mobile telecommunications, PCMCIA (flashcards) and
SCSI LAN PSUs
Distributed and auxiliary supplies
High frequency rectification
DC conversion (telecom DC modules)
Charging circuits
Motor control

Show

ZHCS506TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	60.0 V
Current Rating	500 mA
Capacitance	20.0 pF
Output Current	≤500 mA
Number of Positions	3 Position
Forward Voltage	630mV @500mA
Polarity	Standard
Power Dissipation	330 mW
Reverse recovery time	10 ns
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	5.5 A
Maximum Forward Voltage (Max)	630mV @500mA
Forward Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	125℃ (Max)
Power Dissipation (Max)	330 mW
	Show
Size-Length	3.05 mm
Size-Width	1.4 mm
Size-Height	1 mm
Operating Temperature	125 ℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
