Description
- Description
- ZLDO1117 is a low dropout positive adjustable or fixed-mode regulator with 1A output current capability.
- The ZLDO1117 has a 2% tolerance across the industrial temperature range and is guaranteed to have lower than 1.2V dropout at full load current making it ideal to provide well-regulated outputs of 1.2V to 5.0V with input supply voltages up to 18V. The ZLDO1117 is ideally suited to provide well-regulated supplies for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply across the whole industrial temperature range.
- Features
- • 1.2V Maximum Dropout at Full Load Current
- • 2% Tolerance Over Temperature, Line and Load Variations
- • Fast Transient Response
- • Output Current Limiting
- • Built-in Thermal Shutdown
- • Good Noise Rejection
- • Suitable for use with MLCC Capacitors
- • Qualified to AEC-Q100 Grade 2 (see ‘Ordering Information’)
- • PPAP capable (Note 4)
- • -40 to +125°C Junction Temperature Range
- • Available in TO252 and SOT223 with “Green” Molding Compound(No Br, Sb)
- Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)

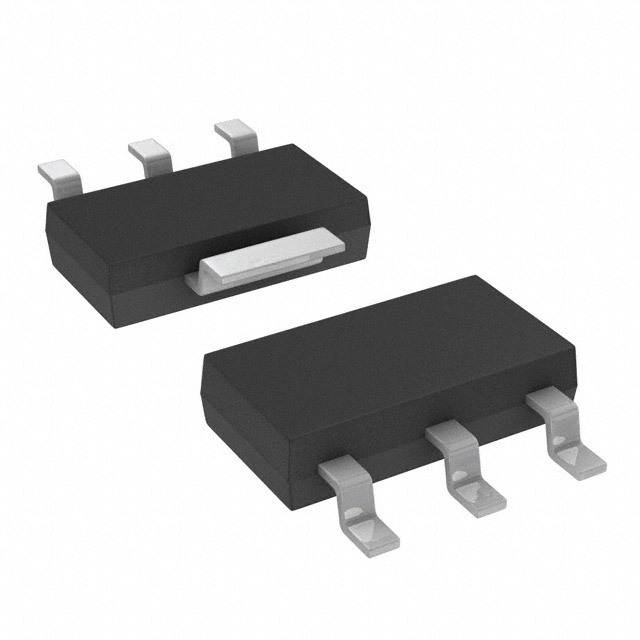

ZLDO1117QG33TA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 1 A |
| Power Dissipation | 15000 mW |
| Quiescent Current | 4 mA |
| voltage rating | 1100 mV |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 15000 mW |
| Accuracy | ±2 % |
| Input Voltage | ≤18 V |
| Show | |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
