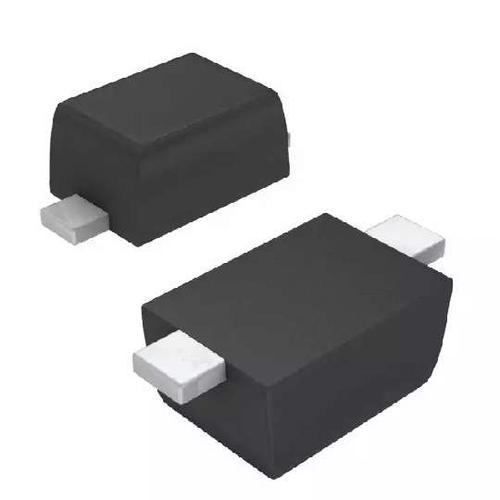

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ZLLS350TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523
Voltage Rating (DC)	40.0 V
Current Rating	380 mA
Capacitance	3.50 pF
Power Rating	357 mW
Output Current	≤380 mA
Number of Positions	2 Position
Forward Voltage	1V @275mA
Polarity	Standard
Power Dissipation	357 mW
Thermal Resistance	350℃/W (RθJA)
Reverse recovery time	1 ns
Forward Current	650 mA
Max Forward Surge Current (Ifsm)	6 A
Maximum Forward Voltage (Max)	1V @275mA
Forward Current (Max)	650 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	413 mW
	Show
Size-Length	1.3 mm
Size-Width	0.9 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
