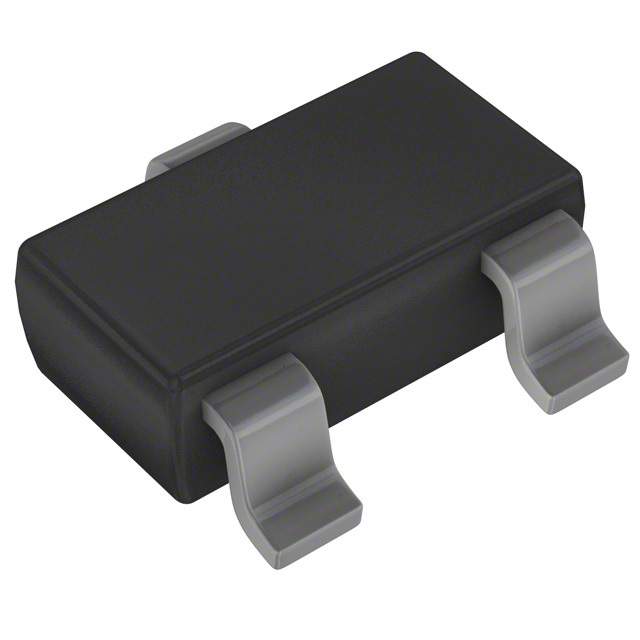

Image is for your reference only,please check specifications for details
- ZMR330FTA - Diodes
-
Manufacturer:Diodes
-
ManyChip's Part#:MC9117033
-
Category:Voltage Regulator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:ZMR330 Series 3.3V 50mA Fixed Output SMT Miniature Voltage Regulator - SOT-23
-
Stock Locations:
-
Availability:279 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.25
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ZMR330 Series 3.3 V 50 mA Fixed Output SMT Miniature Voltage Regulator - SOT-23
ZMR330FTA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 24.0V (max) |
| Output Voltage | 3.3 V |
| Output Current | 50 mA |
| Power Dissipation | 500 mW |
| Quiescent Current | 30 µA |
| Input Voltage (Max) | 24 V |
| Input Voltage (Min) | 4.8 V |
| Output Current (Max) | 0.05 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Input Voltage | 4.8V ~ 24V |
| Show | |
| Size-Length | 3.04 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
