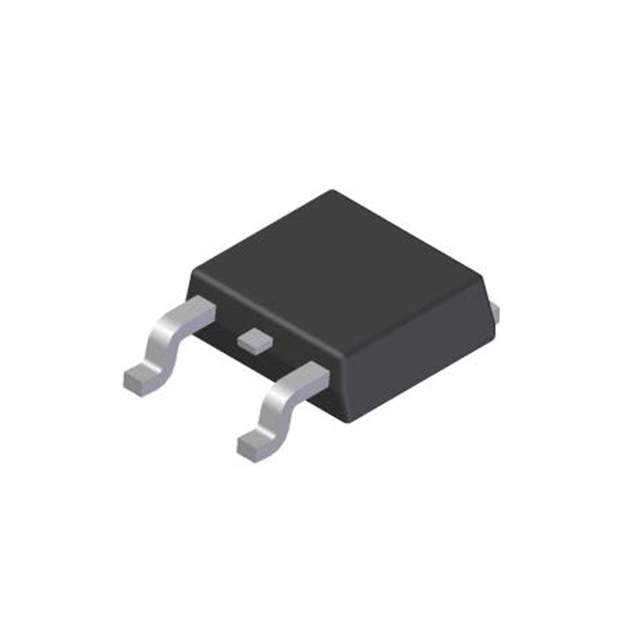

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 60 V 0.055 Ohm Surface Mount Enhancement Mode MOSFET - TO-252
ZXMP6A18KTC Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -10.4 A |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 55 mΩ |
| Polarity | P-CH |
| Power Dissipation | 10.1 W |
| Threshold Voltage | 1 V |
| Input Capacitance | 1.58 nF |
| Gate Charge | 23.0 nC |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60 V |
| Continuous Drain Current (Ids) | 10.4 A |
| Rise Time | 5.8 ns |
| Input Capacitance (Ciss) | 1580pF @30V(Vds) |
| Input Power (Max) | 2.15 W |
| Fall Time | 23 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 2.15W (Ta) |
| Show | |
| Size-Length | 6.73 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.39 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
