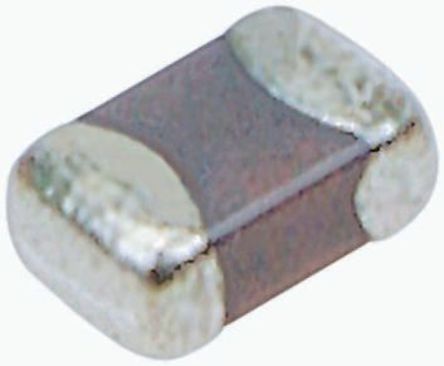

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**AVX 0805 MLCC Series**
X7R formulations are called “temperature stable" ceramics and fall into EIA Class II materials, and COG (NPO) is the most popular “temperature-compensating" EIA Class I ceramic materials

Show

08055F104KAT2A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Voltage Rating (DC)	50 V
Capacitance	0.1 µF
Capacitance Tolerance	±10 %
Dielectric Characteristic	X8R
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	50 V
	Show
Size-Length	2.01 mm
Size-Width	1.25 mm
Size-Height	1.4 mm
Material	X8R/-55℃~+150℃
Dielectric Material	Ceramic
Operating Temperature	-55℃ ~ 150℃
Temperature Coefficient	±15 %
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
