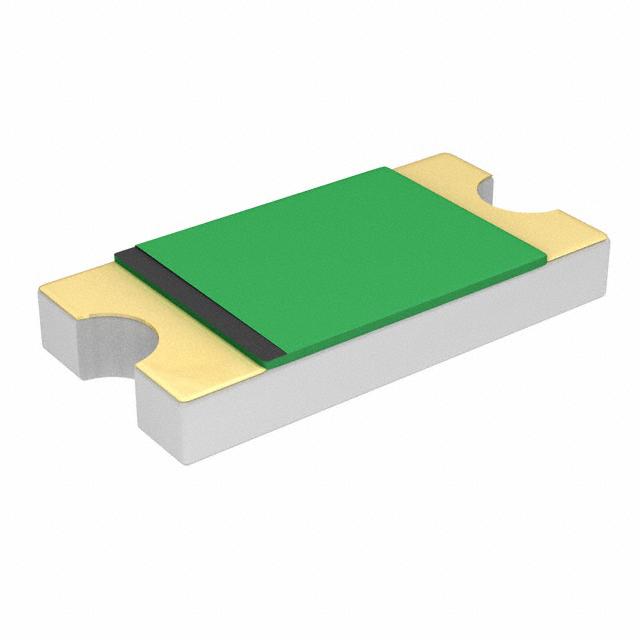

Image is for your reference only,please check specifications for details
- 0ZCJ0025AF2E - BEL Fuse
-
Manufacturer:BEL Fuse
-
ManyChip's Part#:MC7432504
-
Category:Fuse
-
Package:1206
-
Datasheet:Datasheet 3D Model
-
Description:PTC-предохранитель с самовосстановлением 0,25 А (удержание) 0,5 А (срабатывание) 24 В пост. тока 40 А 0,6 Вт 0,8 с 0,55 Ом SMD контактная площадка для пайки 3,5 x 1,8 x 0,75 мм T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Нужен ли вам более удобный и быстрый способ восстановления работы защищаемого оборудования после перегорания предохранителя? Тогда этот самовосстанавливающийся PTC-предохранитель 0ZCJ0025AF2E от Bel Fuse идеально подходит для вас! Это устройство имеет максимальный номинальный ток 40 А. Этот самовосстанавливающийся предохранитель имеет минимальную рабочую температуру -40 °C и максимальную 85 °C. Он имеет 2 вывода. Устанавливайте ваш самовосстанавливающийся предохранитель на печатную плату, используя технологию поверхностного монтажа, для достижения наиболее эффективных результатов. Это изделие имеет длину 3,5 (макс.) мм, высоту 0,75 (макс.) мм и глубину 1,8 (макс.) мм.
0ZCJ0025AF2E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Time to Trip | 80 ms |
| Power Dissipation | 0.6 W |
| Resistance | 2.3 Ω |
| Holding Current | 0.25 A |
| Trip Current | 500 mA |
| Current Rating (Max) | 40 A |
| Holding Current (Max) | 250 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 24 VDC |
| Voltage Rating | 24 VDC |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
