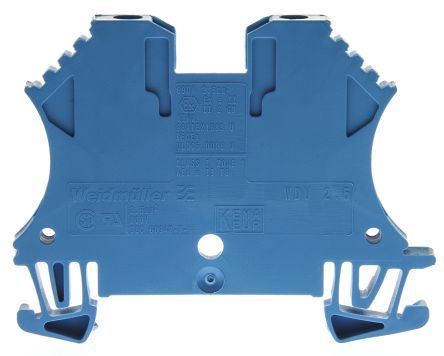

Image is for your reference only,please check specifications for details

1020080000 - Weidmuller
Manufacturer:
Weidmuller
ManyChip's Part#:
MC29637396
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
WEIDMULLER 1020080000 DIN Rail Mount Terminal Block, 2Positions, 30AWG, 12AWG, 2.5mm², Screw, 25A
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1020080000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, Screw
Number of Contacts	2 Contact
Wire Gauge	12AWG ~ 30AWG
Current Rating	25 A
Number of Rows	2 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Current Rating (Max)	25 A
Operating Temperature (Max)	120 ℃
Operating Temperature (Min)	-50 ℃
Voltage Rating (Max)	600 V
Voltage Rating	600 V
Operating Voltage (Max)	600 V
	Show
Size-Length	60 mm
Size-Width	5.1 mm
Size-Height	47 mm
Housing Color	Blue
Color	Blue
Operating Temperature	-50℃ ~ 120℃
Housing Material	Nylon
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536694050
ECCN Code	EAR99
