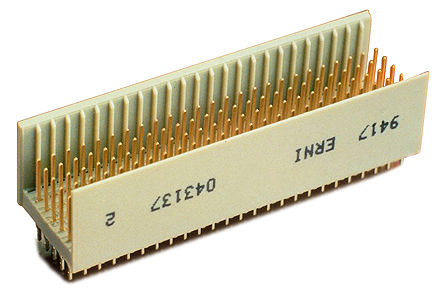

Image is for your reference only,please check specifications for details
- 103670 - ERNI Electronics
-
Manufacturer:ERNI Electronics
-
ManyChip's Part#:MC47540240
-
Category:Connector, Adapter
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Board Connector, 133Contact(s), 7 Row(s), Male, Straight, 0.079inch Pitch, Press Fit Terminal, Locking, Receptacle
-
Stock Locations:
-
Availability:14 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.07
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- When you have numerous wires connected in parallel, then use this hard metric 103670 backplane connector from ERNI Electronics to make sure all the data flows through. This M connector"s 133 contacts that are made out of phosphor bronze and plated with gold. It has a male type gender. This is a 7-row connector. Its pitch is 2 mm. It has a straight body orientation. This backplane connector has an operating temperature of -55 to 125 °C. It uses the press fit termination method. 103670 is housed in polybutylene terephthalate. This product is 38 mm long, 13.45 mm tall and 15.4 mm deep.
103670 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Number of Contacts | 133 Contact |
| Gender | Male |
| Current Rating | 1.5 A |
| Insulation Resistance | 10000 MΩ |
| Number of Rows | 7 Row |
| Number of Mating Cycles | 500 Cycle |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 38 mm |
| Size-Width | 15.4 mm |
| Size-Height | 13.45 mm |
| Contact Material | Phosphor Copper |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
