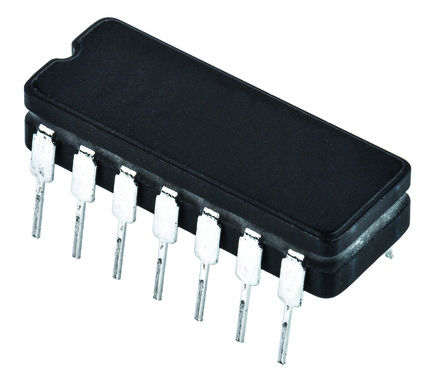

Image is for your reference only,please check specifications for details

LM148J - TI
Manufacturer:
TI
ManyChip's Part#:
MC35323371
Category:
Operational Amplifier, OP Amp IC
Package:
CDIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM148J Operational Amplifier, Quad, 4 Amplifier, 1MHz, 0.5V/µs, 8V to 36V, DIP, 14Pins
Stock Locations:
Availability:
3,873 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.98

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM148J is an internally compensated Operational Amplifier designed to have operating characteristics similar to the µA741. This quadruple, independent, high-gain amplifier exhibit low supply-current drain and input bias and offset currents that are much less than those of the µA741.
Low input offset voltage
Low input offset current
Class AB output stage
Input/output overload protection

Show

LM148J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP-16
Supply Voltage (DC)	18.0 V
Output Current	25.0 mA
Supply Current	2.40 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Power Dissipation	1100 mW
Common Mode Rejection Ratio	70 dB
Input Offset Drift	15.0 µV/K
Bandwidth	1 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	5 mV
Input Bias Current	100 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	70 dB
Supply Voltage	8V ~ 36V
Supply Voltage (Max)	18 V
	Show
Size-Length	26.92 mm
Size-Width	7.62 mm
Size-Height	3.56 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
