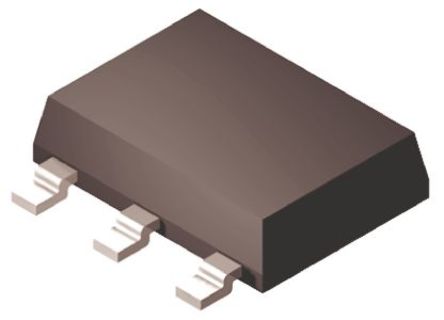

Image is for your reference only,please check specifications for details
- NCP1014ST65T3G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC15369396
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:TO-261-4
-
Datasheet:Datasheet 3D Model
-
Description:AC to DC Switching Converter Off-Line Switcher/SMPS Controller 65kHz T/R 4Pin(3+Tab) SOT-223
-
Stock Locations:
-
Availability:245 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.58
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP101X series integrates a fixed−frequency current−mode controller and a 700 V MOSFET. Housed in a PDIP−7 or SOT−223 package, the NCP101X offers everything needed to build a rugged and low−cost power supply, including soft−start, frequency jittering, short−circuit protection, skip−cycle, a maximum peak current setpoint and a Dynamic Self−Supply (no need for an auxiliary winding).
- Unlike other monolithic solutions, the NCP101X is quiet by nature: during nominal load operation, the part switches at one of the available frequencies (65 − 100 − 130 kHz). When the current setpoint falls below a given value, e.g. the output power demand diminishes, the IC automatically enters the so−called skip−cycle mode and provides excellent efficiency at light loads. Because this occurs at typically 1/4 of the maximum peak value, no acoustic noise takes place. As a result, standby power is reduced to the minimum without acoustic noise generation.
- Features
- • Built−in 700 V MOSFET with Typical RDSon of 11 Ω and 22 Ω
- • Large Creepage Distance Between High−Voltage Pins
- • Current−Mode Fixed Frequency Operation: 65 kHz – 100 kHz − 130 kHz
- • Skip−Cycle Operation at Low Peak Currents Only: No Acoustic Noise!
- • Dynamic Self−Supply, No Need for an Auxiliary Winding
- • Internal 1.0 ms Soft−Start
- • Latched Overvoltage Protection with Auxiliary Winding Operation
- • Frequency Jittering for Better EMI Signature
- • Auto−Recovery Internal Output Short−Circuit Protection
- • Below 100 mW Standby Power if Auxiliary Winding is Used
- • Internal Temperature Shutdown
- • Direct Optocoupler Connection
- • SPICE Models Available for TRANsient Analysis
- • These are Pb−Free and Halide−Free Devices
- Typical Applications
- • Low Power AC/DC Adapters for Chargers
- • Auxiliary Power Supplies (USB, Appliances,TVs, etc.)
NCP1014ST65T3G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-261-4 |
| Frequency | 65 kHz |
| Power Rating | 19 W |
| Halogen Free Status | Halogen Free |
| Output Current | 450 mA |
| Breakdown Voltage | 700 V |
| Number of Positions | 4 Position |
| Rise Time | 20 ns |
| Switching Frequency | 65 kHz |
| Duty Cycle | 67 % |
| Maximum Duty Cycle | 72 % |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 10 V |
| Input Voltage | 8.1V ~ 10V |
| Show | |
| Size-Length | 6.7 mm |
| Size-Width | 3.7 mm |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
