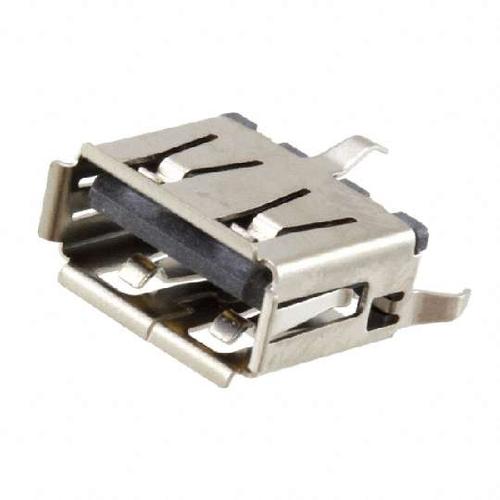

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Make your product"s components work properly with the usb type a 1050570001 audio and video connector from Molex. This RCP connector"s 4 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a receptacle type gender. It has a maximum voltage rating of 30 V. This connector has a single port. This device has a maximum current rating of 1.5 A/contact. 1050570001 is housed in thermoplastic. This component will be shipped in tray format. This product is 14.68 mm long, 7.25 mm tall and 14.3 mm deep. This part has an operating temperature range of -40 °C to 85 °C. Its 4 terminals use the solder termination method.
1050570001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Housing |
| Number of Contacts | 4 Contact |
| Gender | Female |
| Contact Plating | Gold |
| Current Rating | 1.50 A |
| Number of Rows | 01 Row |
| Glow Wire Compliant | Non-Compliant |
| Halogen Free Status | Low Halogen |
| Orientation | Vertical |
| Number of Circuits | 4 Circuit |
| Current Rating (Max) | 1.5A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 30 V |
| Voltage Rating | 30 VAC |
| Show | |
| Size-Length | 14.68 mm |
| Size-Width | 14.3 mm |
| Size-Height | 7.25 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
