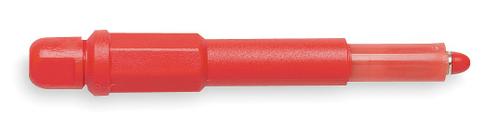

Image is for your reference only,please check specifications for details

122506A - Pomona Electronics
Manufacturer:
Pomona Electronics
ManyChip's Part#:
MC23152404
Category:
Banana Plug Connector
Package:
-
Datasheet:
Datasheet 3D Model
Description:
POMONA 122506A Banana Test Connector, Plug, Cable Mount, 20A, 1kV, Nickel Plated Contacts, Red
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Retractable Sheath Banana Plug, Lucel Acetal Polymer Insulation
* Ideal for creating a special patch cord length
Retractable sheath banana plug use in sheathed and non-sheathed style of banana jacks.

Show

122506A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Case/Package	-
Number of Contacts	1 Contact
Gender	Male
Wire Gauge	18AWG ~ 22AWG
Contact Plating	Nickel
Voltage Rating (DC)	1.50 kV
Current Rating	20 A
Number of Positions	1 Position
Current Rating (Max)	20 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating	1 kV
	Show
Size-Diameter	9.91 mm
Color	Red
Contact Material	Brass
Operating Temperature	-10℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694050
ECCN Code	EAR99
