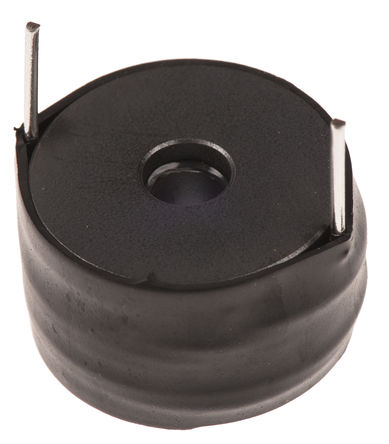

Image is for your reference only,please check specifications for details

1410454C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC10661000
Category:
Inductor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 1410454C Inductor, 1400 Series, 100µH, 5.4A, 5.4A, 0.046Ω, ± 10%
Stock Locations:
Availability:
5 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.67

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1410454C is a radial leaded Bobbin Core Inductor with fully tinned leads. This 1400 series high current PCB mounting hole inductor is suitable for many power supply and other general purpose filtering applications. The use of a non-magnetic screw will ensure mechanical stability. Core manufactured from high-saturation flux density material, winding is insulated by a heat-shrunk sleeve. Supports 1kHz frequency and ±10% inductance tolerance.
Low DC resistance
Low temperature dependence

Show

1410454C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Current Rating	5.4 A
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	100 µH
Self Resonant Frequency	4.6 MHz
Q-Factor	24.0
Resistance	42 mΩ
Resonant Frequency	4.60 MHz
Inductance Tolerance	±10 %
Test Frequency	100 MHz
DC Resistance (DCR)	≤46 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.046 Ω
	Show
Size-Length	27.9 mm
Size-Width	25.9 mm
Size-Height	15.5 mm
Lead Length	10.0 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
