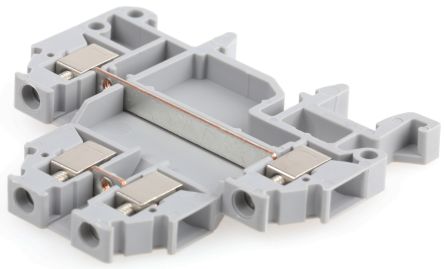

Image is for your reference only,please check specifications for details

1414129 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC24155958
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
DIN Rail Mount Terminal Block, 4Positions, 26AWG, 16AWG, 1.5mm², Screw, 15A
Stock Locations:
Availability:
732 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1414129 is a 4-position 2-level grey Micro Terminal Block with the M2 screw connection and a polyamide insulator. This MTTB 1,5 terminal supports NS 15, NS 35/7,5, NS 35/15 mounting type. It has clear arrangement and easy potential distribution. The bridging option on both levels.
4.2mm Design width
0.14 to 1.5mm² Cross section
4kV Rated surge voltage
6mm Stripping length
0.22 to 0.25Nm Tightening torque
UL94V-0 Flammability rating

Show

1414129 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, Screw
Pin Pitch	4.2 mm
Number of Contacts	4 Contact
Wire Gauge	14AWG ~ 30AWG
Voltage Rating (AC)	400 V
Current Rating	17.5 A
Number of Rows	4 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	4 Position
Current Rating (Max)	17.5 A
Voltage Rating (Max)	400 V
Voltage Rating	400 V
Operating Voltage (Max)	400 V
	Show
Size-Length	44 mm
Size-Width	4.2 mm
Size-Height	41 mm
Housing Color	Gray
Color	Gray
Housing Material	Nylon
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536904000
ECCN Code	EAR99
