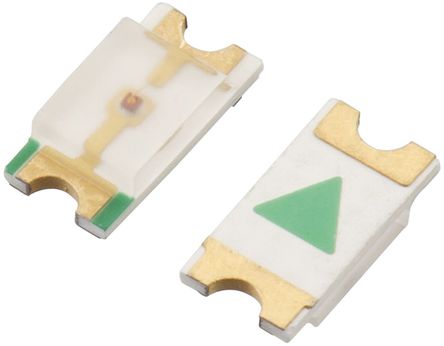

Image is for your reference only,please check specifications for details

150120RS75000 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC30387433
Category:
Based LED
Package:
1206
Datasheet:
Datasheet 3D Model
Description:
LED, 1206, RED, 150MCD, 625NM; Bulb Size: -; LED Colour: Red; Luminous Intensity: 1
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 150120RS75000 is a 1206 mono-colour SMD LED with water clear lens, made of AlInGaP chip. It is suitable for backlight for mobile and portable device keypads, indoor and outdoor message boards, flat backlight for LCDs, switches and symbols, display for industrial control systems and traffic, miniaturized colour effects and pedestrian mark.
Low energy consumption
High reliability
Low current requirement
Fast switching
No UV/IR radiation
Smallest SMD package with exceptional brightness
Top view
PBC high-usage
72mW Power dissipation
5V Reverse voltage
2000V ESD threshold/human body model
Level-3 moisture sensitivity

Show

150120RS75000 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	1206
Power Rating	72 mW
Number of Positions	2 Position
Forward Voltage	2 V
Wavelength	625 nm
Luminous Intensity	150 mcd
Viewing Angle	140°
Peak Wavelength	630 nm
Test Current	20 mA
Forward Current	30 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	3.2 mm
Size-Width	1.6 mm
Size-Height	0.69 mm
Color	Red
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
