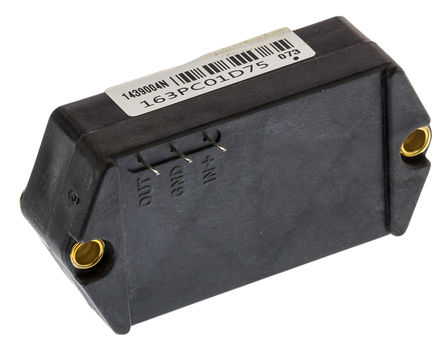

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 160PC series Pressure Sensor with low pressure differential, gage and vacuum gage/amplified. Amplified pressure sensor are 100% tested to insure that the maximum null and sensitivity temperature shift does not exceed the specification. The diagram below illustrates how null and sensitivity shift relates to temperature. Note that the maximum shift occurs at temperature extremes. Therefore, if a sensor is not exposed to the entire temperature range, the maximum null and sensitivity shift will actually be less than the value specified.
- Low pressure measurement
- PCB terminals on opposite side from the ports
- Fully signal conditioned
163PC01D75 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | SIP-3 |
| Supply Voltage (DC) | 8.00V (max) |
| Voltage Rating (DC) | 8.00 V |
| Output Voltage | 3.50 V |
| Supply Current | 8 mA |
| Input Current | 20 mA |
| Operating Temperature (Max) | 45 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Accuracy | ±2 % |
| Voltage Rating | 8 VDC |
| Supply Voltage | 6V ~ 16V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 9026204000 |
| ECCN Code | EAR99 |
