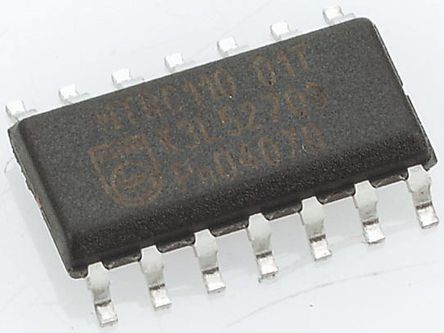

Image is for your reference only,please check specifications for details

MC33079D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC50681766
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS MC33079D Operational Amplifier, Quad, 4 Amplifier, 15MHz, 7V/µs, ± 2.5V to ± 15V, SOIC, 14Pins
Stock Locations:
Availability:
1,227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC33079D is a low noise monolithic quad Operational Amplifier offers low voltage noise (4.5nV/√Hz) and high frequency performance (15MHz gain bandwidth product, 7V/µs slew rate). In addition the MC33079 device has a very low distortion (0.002%) and excellent phase/gain margins. The output stage allows a large output voltage swing and symmetrical source and sink currents.
Excellent frequency stability
2kV ESD Protection
+14.3/-14.6V Large output voltage swing

Show

MC33079D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	36.0 V
Supply Current	8 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	15 MHz
Slew Rate	7.00 V/μs
Gain Bandwidth Product	15 MHz
Input Offset Voltage	2.5 mV
Input Bias Current	250 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	15 MHz
Supply Voltage (Max)	30 V
Supply Voltage (Min)	5 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
