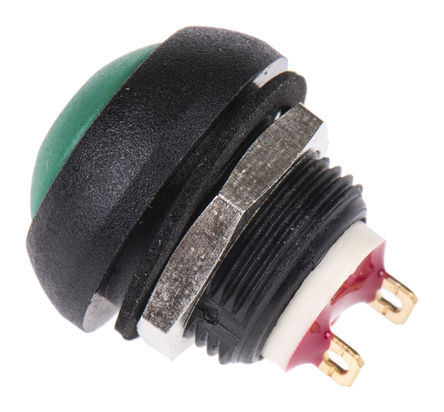

Image is for your reference only,please check specifications for details

ISR3SAD300 - Apem Components
Manufacturer:
Apem Components
ManyChip's Part#:
MC28637531
Category:
Pushbutton Switch, Switch Push button
Datasheet:
Datasheet 3D Model
Description:
Switch Push Button N.O. SPST Round Curved Button 0.4A 32VAC 48VDC Momentary Contact Solder Lug
Stock Locations:
Availability:
3,555 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.74

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISR3SAD300 is a single-pole single-throw (SPST) momentary threaded bushing sealed Pushbutton Switch with solder lug terminal, green round curved polyamide 6/6 actuator, black bezel and NO function. The IB series switch has gold plated silver contact, polyamide 6/6 bushing/bezel and epoxy terminal seal. A sealing boot is available to protect the switches against frost and sand.
Compact and lightweight
Tactile feedback
IP67 Protection rating

Show

ISR3SAD300 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Contact Plating	Gold
Voltage Rating (DC)	50 V
Actuator Type	Button
Voltage Rating (AC)	32 V
Current Rating	0.125 A
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPST-NO
Contact Resistance	50.0 mΩ
Contact Current Rating	400mA @32VAC
Current Rating (Max)	0.4A @32VAC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	125 VAC
Maximum Contact Resistance (Max)	50 mΩ
	Show
Size-Length	17.5 mm
Size-Width	17.5 mm
Size-Height	20 mm
Color	Green
Contact Material	Silver
Operating Temperature	-40℃ ~ 85℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509031
ECCN Code	EAR99
