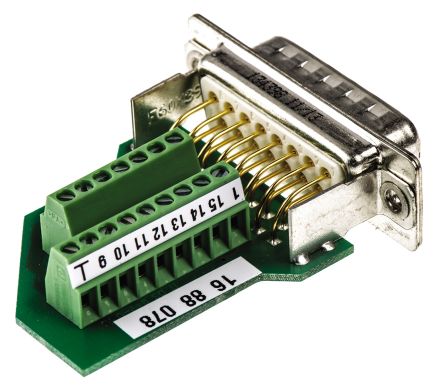

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- D-SUB Module M 15 POS ST
1688078 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Contacts | 15 Contact |
| Gender | Male |
| Contact Plating | Gold |
| Current Rating | 5 A |
| Number of Rows | 2 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 15 Position |
| Current Rating (Max) | 5 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 60 V |
| Voltage Rating | 60 V |
| Show | |
| Size-Length | 39.3 mm |
| Size-Width | 12.6 mm |
| Size-Height | 12.6 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -20℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694030 |
| ECCN Code | EAR99 |
