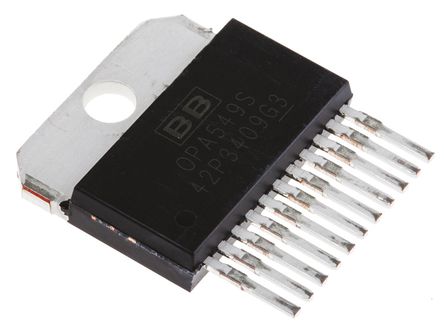

Image is for your reference only,please check specifications for details
- OPA549S - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4281030
-
Category:Operational Amplifier, OP Amp IC
-
Package:TO-220-11
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Single, 1 Amplifier, 900kHz, 9V/µs, ± 4V to ± 30V, TO-220, 11Pins
-
Stock Locations:
-
Availability:22 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 27.61
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The OPA549 is a low-cost, high-voltage/high-current operational amplifier ideal for driving a wide variety of loads. This laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current.
- FEATURES
- ●HIGH OUTPUT CURRENT:
- 8A Continuous
- 10A Peak
- ●WIDE POWER-SUPPLY RANGE:
- Single Supply: +8V to +60V
- Dual Supply: ±4V to ±30V
- ●WIDE OUTPUT VOLTAGE SWING
- ●FULLY PROTECTED:
- Thermal Shutdown
- Adjustable Current Limit
- ●OUTPUT DISABLE CONTROL
- ●THERMAL SHUTDOWN INDICATOR
- ●HIGH SLEW RATE: 9V/µs
- ●CONTROL REFERENCE PIN
- ●11-LEAD POWER PACKAGE
- APPLICATIONS
- ●VALVE, ACTUATOR DRIVERS
- ●SYNCHRO, SERVO DRIVERS
- ●POWER SUPPLIES
- ●TEST EQUIPMENT
- ●TRANSDUCER EXCITATION
- ●AUDIO POWER AMPLIFIERS
OPA549S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | TO-220-11 |
| Output Current | 8 A |
| Supply Current | 26 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 11 Position |
| Common Mode Rejection Ratio | 80 dB |
| Input Offset Drift | 20.0 µV/K |
| Bandwidth | 900 kHz |
| Slew Rate | 9.00 V/μs |
| Gain Bandwidth Product | 900 kHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 100 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 0.9 MHz |
| Minimum CMRR Range | 80 dB |
| Supply Voltage (Max) | 60 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Size-Length | 20.02 mm |
| Size-Width | 10.7 mm |
| Size-Height | 4.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
