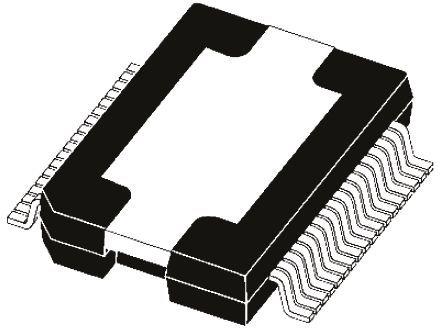

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO8200B is a galvanic isolated 8-channel high-side smart power Solid State Relay Driver featuring a very low supply current. It contains 2 independent galvanic isolated voltage domains (Vcc for the Power stage and Vdd for the Digital stage). Additional embedded functions are loss of GND protection, undervoltage shutdown with hysteresis and reset function for immediate power output shutdown. The IC is intended to drive any kind of load with one side connected to ground. Active channel current limitation combined with thermal shutdown, (independent for each channel) and automatic restart, protect the device against overload and short-circuit. In overload conditions, if junction temperature overtakes threshold, the channel involved is turned off and on again automatically after the IC temperature decreases below a reset threshold.
Parallel input interface
Direct and synchronous control mode
High common mode transient immunity
0.7A per channel Output current
Short-circuit protection
Channel overtemperature protection
Thermal independence of separate channels
Common output disable pin
Case overtemperature protection
Very low supply current
Common fault open drain output
5 and 3.3V TTL/CMOS compatible I/Os
Fast demagnetization of inductive loads
Reset function for IC outputs disable

Show

ISO8200B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	PowerSO-36
Number of Outputs	8 Output
Input Voltage (DC)	36.0 V
Output Current	1.7 A
Supply Current	9 mA
Number of Positions	36 Position
Input Voltage (Max)	36 V
Output Current (Max)	700 mA
Input Current (Min)	9 mA
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	36 V
	Show
Size-Length	16 mm
Size-Width	11.1 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
