Description

These high power bipolar transistors, housed in LFPAK56 (Power-S08/SOT669) packages, deliver DPAK-like thermal and electrical performance in just half the footprint. Offering reliable, energy-efficient performance, they are AEC-Q101 qualified and support high-temperature operation (175 °C).
High power dissipation (Ptot)
Suitable for high-temperature applications (175 °C)
Space-saving 5 x 6 mm package outline is half the size of equivalent transistors in DPAK, SOT223, and other packages
Low profile (1 mm)
High reliability and mechanical ruggedness thanks to solid copper clip (no wires)
High energy efficiency due to less heat generation
AEC-Q101 qualified
Growing, furtureproof portfolio

Show

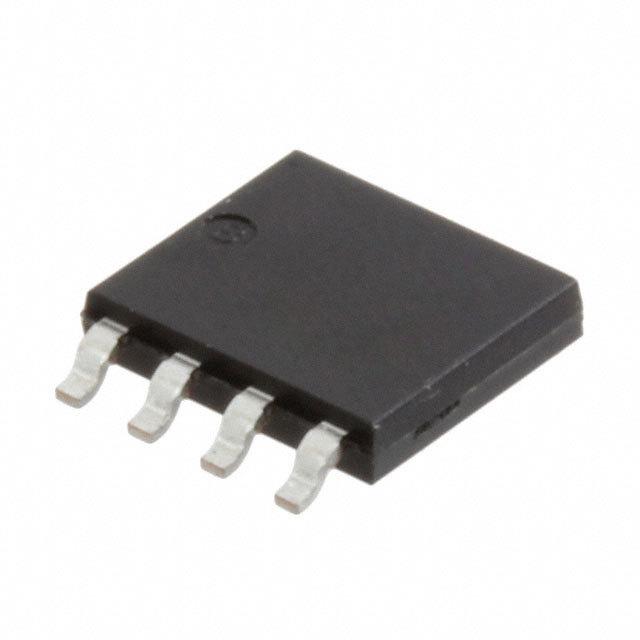

PHPT610030NPKX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOT-1205
Number of Positions	8 Position
Power Dissipation	1.25 W
Breakdown Voltage (Collector to Emitter)	100 V
hFE Min	80 @1A, 10V
Input Power (Max)	1.25 W
DC Current Gain (hFE)	10
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	25000 mW
	Show
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
