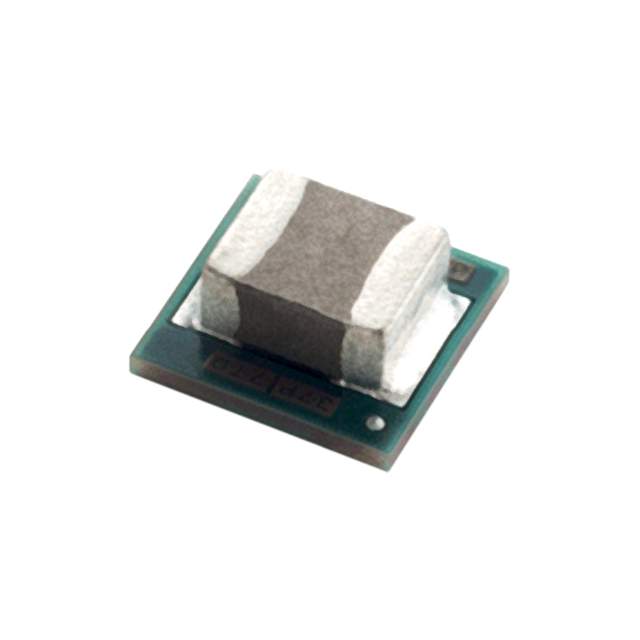

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 6V 2A 3V - 17V Input
TPS82140SILR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SMD-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.9V ~ 6V |
| Output Current | 2 A |
| Number of Positions | 8 Position |
| Switching Frequency | 2 MHz |
| Input Voltage (Max) | 17 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 6 V |
| Output Voltage (Min) | 900 mV |
| Output Current (Max) | 2 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 3V ~ 17V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Pre-Release |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
