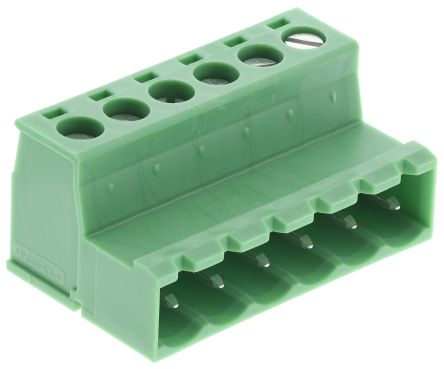

Image is for your reference only,please check specifications for details
- 1786213 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC48271670
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Conn; Term Blk; PCB; Plug; Screw; 6; 5.08mm; 24-12AWG; Green; 12A; 250V; M 3
-
Stock Locations:
-
Availability:160 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.7
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Phoenix Contacts inverted plug connector with screw connection
- **Features**
- * Connectors with Inverted Contact System (Male Contact)
- * Can Be Combined with Inverted Headers for Shock-Proof Applications
1786213 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Pin Pitch | 5.08 mm |
| Number of Contacts | 6 Contact |
| Wire Gauge | 12AWG ~ 30AWG |
| Contact Plating | Tin |
| Current Rating | 12 A |
| Number of Rows | 1 Row |
| Number of Circuits | 6 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 6 Position |
| Mounting Angle | 90.0 ° |
| Current Rating (Max) | 12 A |
| Voltage Rating (Max) | 320 V |
| Voltage Rating | 250 V |
| Operating Voltage (Max) | 320 V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 19.2 mm |
| Size-Height | 15 mm |
| Housing Color | Green |
| Color | Green |
| Material | Nylon |
| Weight | 0.0103 KG |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694040 |
| ECCN Code | EAR99 |
