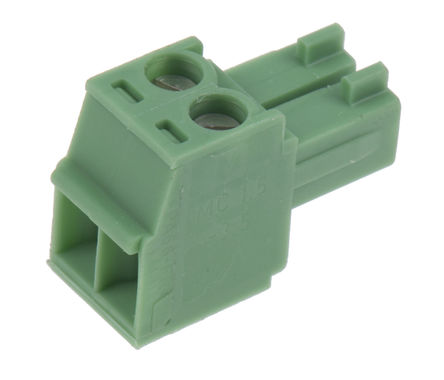

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:**
- * Polyamide Insulating Material
- * Voltage: 125, Amps: 8, AWG: 30-14
- * Very Economical and Low Height
- * Plug-In Direction Parallel to the Conductor Axis
1840366 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Pin Pitch | 3.5 mm |
| Number of Contacts | 2 Contact |
| Wire Gauge | 14AWG ~ 30AWG |
| Contact Plating | Tin |
| Voltage Rating (DC) | 160 V |
| Current Rating | 8 A |
| Number of Rows | 1 Row |
| Number of Circuits | 2 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Mounting Angle | 180 ° |
| Current Rating (Max) | 8 A |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 125 V |
| Operating Voltage (Max) | 160 V |
| Show | |
| Size-Length | 7.00 mm |
| Size-Width | 7 mm |
| Size-Height | 11.1 mm |
| Housing Color | Green |
| Color | Green |
| Contact Material | Copper Alloy |
| Insulation Material | Nylon |
| Operating Temperature | -40℃ ~ 100℃ |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694040 |
| ECCN Code | EAR99 |
