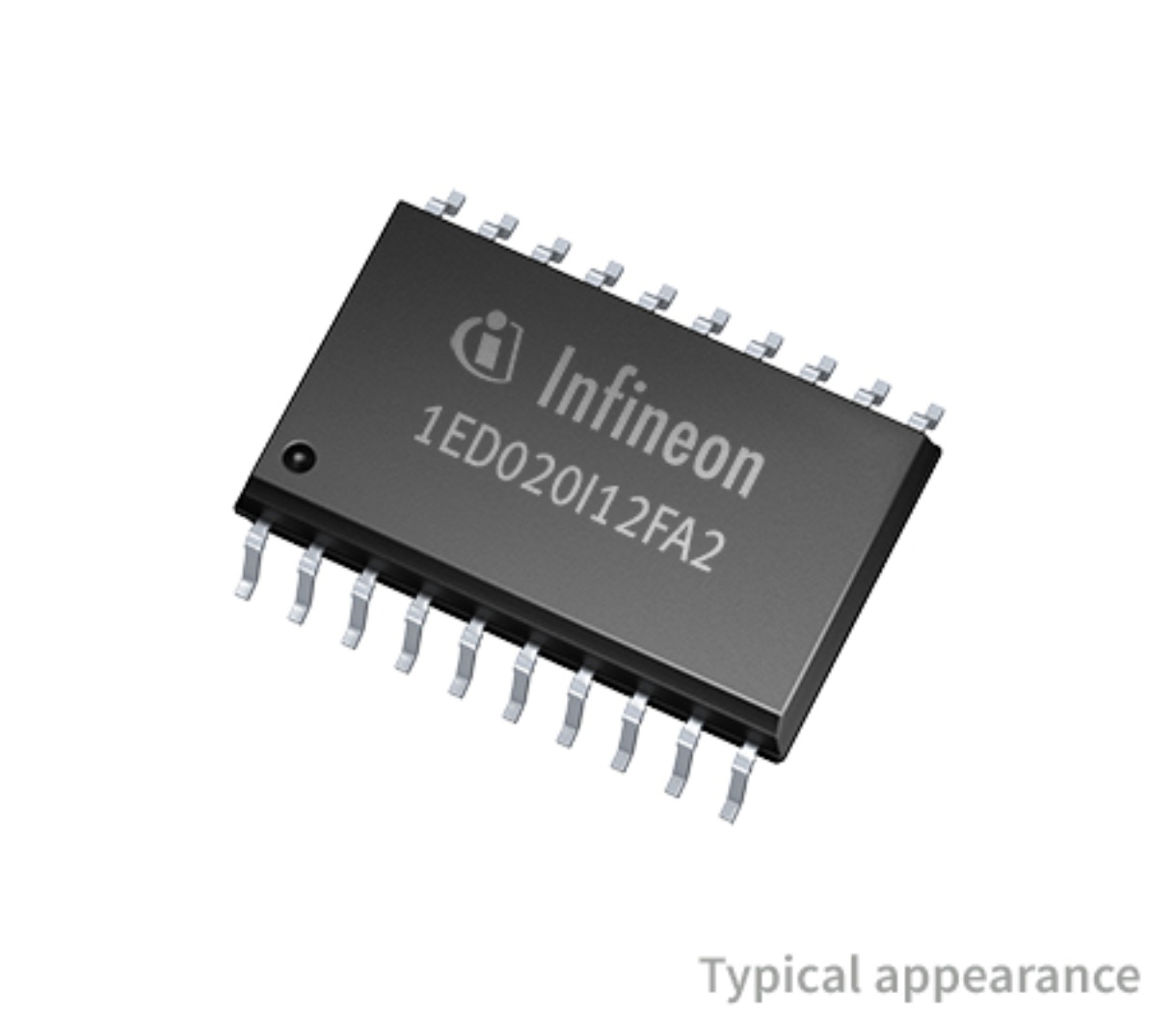

- 1ED020I12FA2XUMA2 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC7653778
-
Category:FET Driver
-
Package:PG-DSO-20
-
Datasheet:Datasheet 3D Model
-
Description:Half Bridge Based MOSFET Driver, 2A, PDSO20, GREEN, PLASTIC, SOP-20
-
Stock Locations:
-
Availability:299 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.8
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Coreless transformer isolated driver
- Basic insulation according to DIN EN 60747-5-2, pending
- Integrated protection features
- Suitable for operation at high ambient temperature
- Automotive Qualified
- 2A rail-to-rail output
- V(cesat)-detection
- Active Miller Clamp
- Benefits:
- Cost effective technology
- Compact design
1ED020I12FA2XUMA2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | PG-DSO-20 |
| Rise/Fall Time | 30ns, 50ns |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Positions | 20 Position |
| Power Dissipation | 700 mW |
| Isolation Voltage | 4500 Vrms |
| Fall Time (Max) | 600 ns |
| Fall Time (Max) | 800 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 700 mW |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
