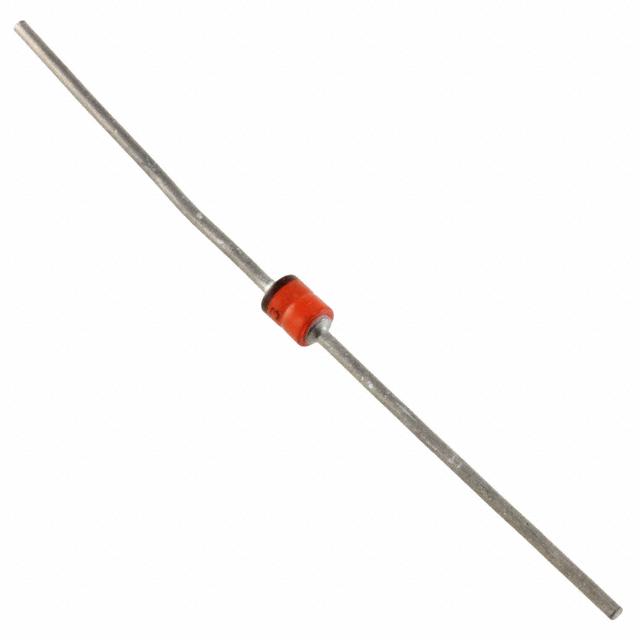

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- This Zener Voltage Regulator series is military qualified to MIL-PRF-19500/356 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 5 Watt Zener Voltage Regulators are hermetically sealed with voidless-glass construction using an internal metallurgical bond. It includes Zener selections from 3.3 to 390 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. They are also available in surface-mount packages (see separate data sheet for 1N4954US thru 1N4996US, 1N5968US thru 1N5969US, and 1N6632US thru 1N6637US). Microsemi also offers numerous other Zener products to meet higher and lower power ratings in both thru-hole and surface mount packages.
- FEATURES
- • Popular JEDEC registered series
- • Voidless hermetically sealed glass package
- • Extremely robust construction
- • Triple-layer passivation
- • Internal “Category I” Metallurgical bonds for 1N4954 thru 1N4996, and “Category III” for 1N6632 thru 1N6637 as well as 1N5968 thru 1N5959
- • JAN, JANTX, JANTXV, and JANS available per MIL PRF-19500/356
- • Surface mount equivalents also available in a square end-cap MELF configuration with “US” suffix (see separate data sheet for 1N4954US thru 1N4996US, 1N6632US thru 1N6637US and 1N5968US thru 1N5969US
- APPLICATIONS / BENEFITS
- • Regulates voltage over a broad operating current and temperature range
- • Extensive selection from 3.3 to 390 V
- • Standard voltage tolerances are plus/minus 5% with no suffix
- • Tight tolerances available in plus or minus 2% or 1% with C or D suffix respectively
- • Flexible axial-lead mounting terminals
- • Nonsensitive to ESD per MIL-STD-750 Method 1020
- • Inherently radiation hard as described in Microsemi MicroNote 050
1N4970 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Case E |
| Capacitance Tolerance | ±5 % |
| Forward Voltage | 1.5V @1A |
| Power Dissipation | 5000 mW |
| Test Current | 40 mA |
| Zener Voltage | 33 V |
| Maximum Forward Voltage (Max) | 1.5V @1A |
| Input Power (Max) | 5 W |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Operating Temperature | -65℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status |
