Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 2 Pin |

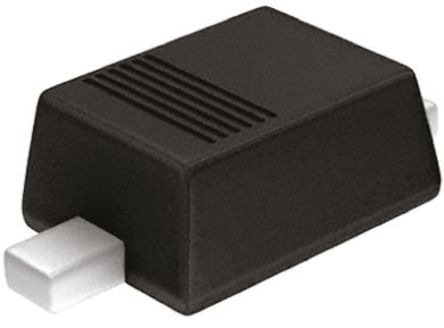

Case/Package | SOD-323 |
Load Current | 150 mA |
Number of Positions | 2 Position |
Forward Voltage | 1V @100mA |
Thermal Resistance | 500℃/W (RθJA) |
Reverse recovery time | 4 ns |
Forward Current | 200 mA |
Max Forward Surge Current (Ifsm) | 4 A |
Maximum Forward Voltage (Max) | 1 V |
Forward Current (Max) | 300 mA |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Junction Temperature | 150℃ (Max) |
Show | |
Size-Length | 1.8 mm |
Size-Width | 1.3 mm |
Size-Height | 1 mm |
Operating Temperature | -55℃ ~ 150℃ |
Product Lifecycle Status | Active |
Packaging | Cut Tape (CT) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
HK STC License | NLR |
