Description
- Ultra High Speed Switching Application
- Small package : SC-61
- Low forward voltage : VF (3)= 0.92V (typ.)
- Fast reverse recovery time : trr= 1.6ns (typ.)
- Small total capacitance : CT= 0.9pF (typ.)
1SS272 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |

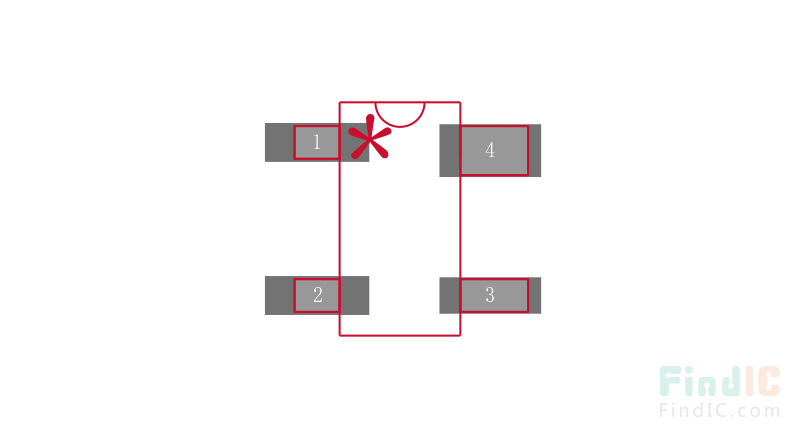

| Case/Package | SC-61B |
| Reverse recovery time | 4 ns |
| Maximum Forward Voltage (Max) | 1.2V @100mA |
| Junction Temperature | 125℃ (Max) |
| Show | |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
