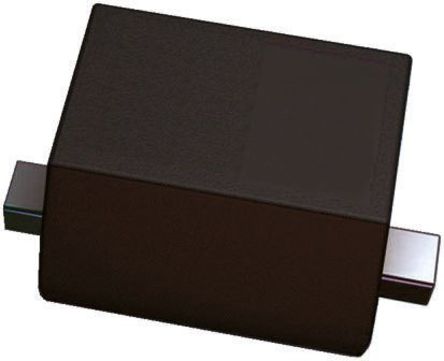

Image is for your reference only,please check specifications for details

1SS400T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3082004
Category:
TVS Diode
Package:
SOD-523-2
Datasheet:
Datasheet 3D Model
Description:
ON Semi 1SS400T1G, SMT Small Signal Diode, 100V 200mA, 4ns, 2Pin SOD-523
Stock Locations:
Availability:
1,304 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.04

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1SS400T1G is a small signal Switching Diode with 100% matte Sn (tin)-plated lead terminals. It is designed for high speed switching.
260°C Qualified reflow temperature
AEC-Q101 qualified and PPAP capable
Pb-free, halogen free/BFR free

Show

1SS400T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523-2
Voltage Rating (DC)	100 V
Current Rating	200 mA
Capacitance	3.00 pF
Halogen Free Status	Halogen Free
Output Current	≤200 mA
Number of Positions	2 Position
Forward Voltage	1.2 V
Polarity	Standard
Power Dissipation	200 mW
Reverse recovery time	4 ns
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.3 mm
Size-Width	0.8 mm
Size-Height	0.7 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
