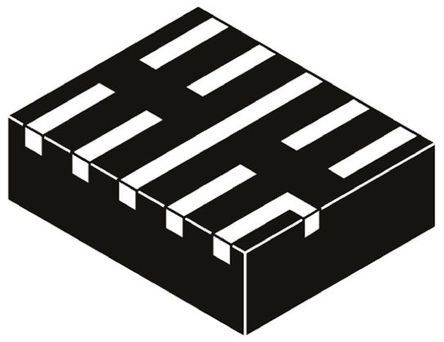

EMI4182MTTAG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC26208119
Category:
Inductor Choke
Package:
WDFN-10
Datasheet:
Datasheet 3D Model
Description:
DIODE, TVS ESD, HDMI, 2CH, WDFN10; Diode Type: EMI & ESD Protection; Clamping Voltage Vc Max: 18V; No. of Pins: 10
Stock Locations:
Availability:
1,201 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The EMI4182MTTAG is a highly integrated Common Mode Filter (CMF) with ESD protection provides protection and EMI reduction for systems using high speed serial data lines with cost and space savings over discrete solutions. The common mode filter features low channel input capacitance provides superior impedance matching performance.
100mA DC Current per line
1µA at 25°C Channel leakage current
8R Channel resistance
Halogen-free

Show

EMI4182MTTAG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WDFN-10
Halogen Free Status	Halogen Free
Number of Positions	10 Position
Clamping Voltage	18 V
DC Resistance (DCR)	8 Ω
Current Rating (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	6.8 V
	Show
Size-Length	2.5 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
