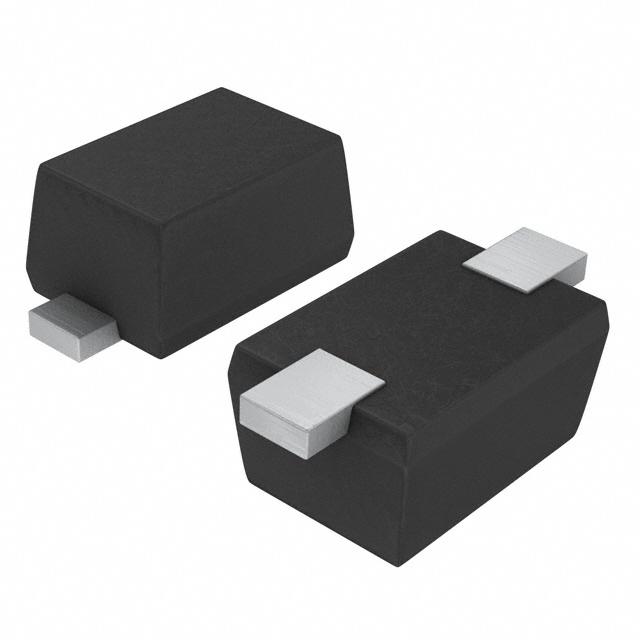

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1SS400TE61 is a surface mount silicon epitaxial planer Switching Diode features ultra small power mould type (UMD2) and high reliability. It is suitable for high speed switching. It can also be used in coin processing machines, AC Servo, electric bike, stepper motor and brushed DC motor control, DVR/DVS, portable data terminal, surveillance camera for network, machine vision camera for industrial, embedded pc and solar power inverters.
125°C Junction temperature

Show

1SS400TE61 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523
Voltage Rating (DC)	90.0 V
Current Rating	100 mA
Capacitance	3.00 pF
Output Current	≤100 mA
Number of Positions	2 Position
Forward Voltage	1.2V @100mA
Polarity	Standard
Reverse recovery time	4 ns
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	125℃ (Max)
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Product Lifecycle Status	Not For New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
