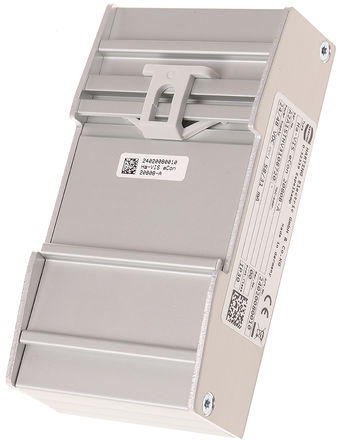

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Ha-VIS eCon 2000 Fast Ethernet family of unmanaged Ethernet switches is equipped with up to 8 Fast Ethernet ports and allow for cost-efficient and quick expansion and/or reconstruction of network infrastructures. Due to the extremely flat design, these switches can be accommodated in installations where space is restricted towards the cable connection at the front. The selection includes various combinations of variants with RJ45 and fibre optic ports. Automatic detection of the transmission rate (auto-negotiation) and of the wiring of the twisted pair data cable (autopolarity and auto-MDI(X)) allow for simple plug and play. All variants are available with the temperature ranges “Industrial” and “Commercial”.
**Features:**
* Fast Ethernet Non-Blocking Switch Architecture in Accordance with IEEE 802.3
* Variants with Industrial Temperature Range of –40°C to +70°C
* Wide Range Power Supply 24/48 VDC
* Surge Prrotection and Reverse Polarity Protection
* Minimum Energy Consumption Due to Energy Efficient Ethernet

Show

24020080010 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Current Rating	60.0 mA
Supply Current	60 mA
Operating Temperature (Max)	55 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	24 VDC
Supply Voltage (Max)	60 VDC
Input Voltage	9VDC ~ 60VDC
	Show
Size-Length	114 mm
Size-Width	60 mm
Size-Height	113.5 mm
Weight	280 g
Operating Temperature	0℃ ~ 55℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
