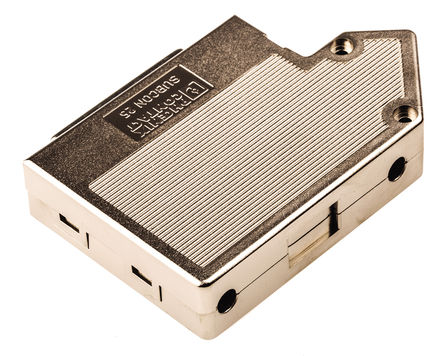

Image is for your reference only,please check specifications for details

2761619 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC50505067
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Package:
metal-plated
Datasheet:
Datasheet 3D Model
Description:
"Phoenix 2761619 Female D-Sub Bus Connector 100 Milli-Amp, 50V, Metal Plated ABS Housing, 25Positions, "
Stock Locations:
Availability:
40 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 60.29

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

PHOENIX CONTACT"s SUBCON product provides a means to make D-SUB cable assemblies without the hassle of soldering or crimping. The SUBCON product provides connection from the pins of a D-SUB connector to individual screw actuated terminal blocks all in a D-SUB clamshell housing. This means that the only tool required to configure a cable is a screwdriver.
**Features:**
* Metallized Housing
* Integral Jack Screws
* Integral Strain Relief
* D-SUB to MKDSC 1.5 Terminal Blocks
* 9/25 Pin Male or Female Versions
* Max. Cable Diameter: 10 mm; AWG 26-14
**Benefits:**
* EMI/RFI Shielded (Ideal for Sensitive Communication Signals)
* Secure Connection of Cable Assembly to Mating Receptacle
* Secure Connection of SUBCON to Cable
* Easy Means to Construct Cable Assemblies; No More Soldering or Crimping; Wide Range of Product to Suit Common Applications

Show

2761619 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Case/Package	metal-plated
Number of Contacts	25 Contact
Gender	Female
Voltage Rating (AC)	60.0 V
Current Rating	1 A
Number of Rows	2 Row
Number of Positions	25 Position
Number of Mating Cycles	50 Cycle
Current Rating (Max)	0.1 A
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating (Max)	50 V
Voltage Rating	60 V
	Show
Size-Width	16 mm
Size-Height	78.7 mm
Material	Acrylonitrile Butadiene Styrene (ABS)
Operating Temperature	-20℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694030
ECCN Code	EAR99
