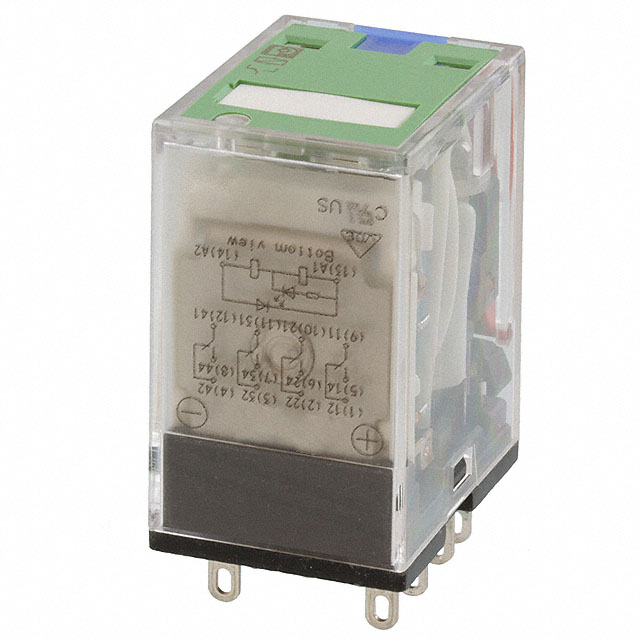

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The REL-MR series electromechanical miniature Power Relay is recommended for standard applications. It is available in the following versions with one 16A PDT contact, two 8A PDT contacts, in all popular AC and DC coil voltages, in power contact and gold contact versions. Additional suitable standard and special relays (for lamp loads) are available on request.
- Suitable for PR1-B
2834096 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 14 Pin |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Contacts Type | 4PDT |
| Contact Current Rating | 5 A |
| Coil Voltage | 24 VDC |
| Coil Current | 38 mA |
| Coil Resistance | 636 Ω |
| Current Rating (Max) | 5 A |
| Coil Voltage (DC) | 24 V |
| Input Power (Max) | 1.25 KVA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Width | 21.5 mm |
| Size-Height | 28 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -55℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
