Description

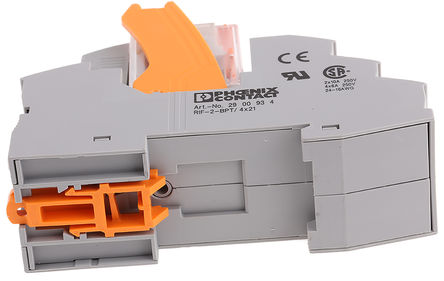

- **RIF2 Power Relay Module**
- Professional range of power relays that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.
2903304 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 14 Pin |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Coil Voltage | 230 VAC |
| Coil Current | 6.5 mA |
| Coil Voltage (AC) | 230 V |
| Coil Resistance | 16.1 kΩ |
| Current Rating (Max) | 5 A |
| Input Power (Max) | 1.25 KVA |
| Operating Temperature (Max) | 50 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 31 mm |
| Size-Width | 31 mm |
| Size-Height | 96 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 50℃ |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
