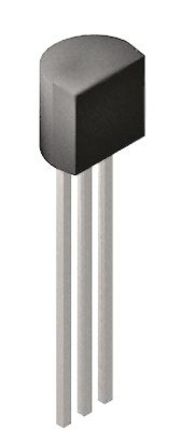

Image is for your reference only,please check specifications for details

2N3904BU - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC6228336
Category:
BJT Transistor, BJT
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
NPN 625mW 40V 200mA Through Hole General Purpose Amplifier - TO-92-3
Stock Locations:
Availability:
9,450 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2N3904BU is a NPN Transistor for general purpose amplifier and switch. The useful dynamic range extends to 100mA as a switch and to 100MHz as an amplifier.
200°C/W Thermal Resistance, Junction-to-Ambient

Show

2N3904BU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Frequency	300 MHz
Voltage Rating (DC)	60.0 V
Current Rating	200 mA
Power Rating	360 mW
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	625 mW
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	0.2A
hFE Min	100 @10mA, 1V
Input Power (Max)	625 mW
DC Current Gain (hFE)	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
