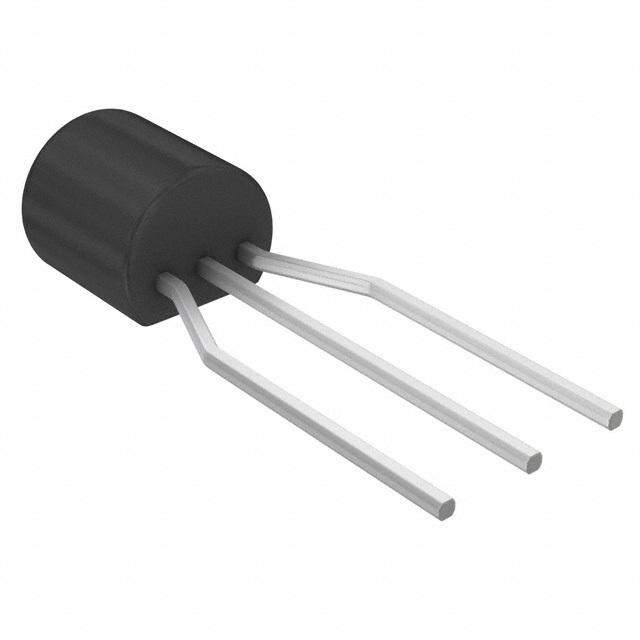

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PNP Bipolar Transistor is designed for use in linear and switching applications. The device is housed in the TO-92 package, which is designed for medium power applications.
- Features
- ---
- |
- Pb-Free Packages are Available*
2N4403RLRAG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Frequency | 200 MHz |
| Voltage Rating (DC) | -40.0 V |
| Current Rating | -600 mA |
| Polarity | PNP, P-Channel |
| Power Dissipation | 0.625 W |
| Breakdown Voltage (Collector to Emitter) | 40 V |
| Continuous Collector Current | 0.6A |
| hFE Min | 100 @150mA, 2V |
| Input Power (Max) | 625 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 625 mW |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
