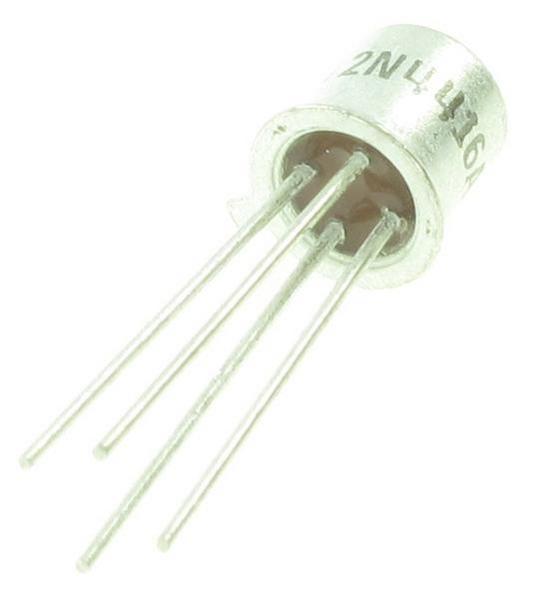

Image is for your reference only,please check specifications for details

2N4416A - Central Semiconductor
Manufacturer:
Central Semiconductor
ManyChip's Part#:
MC74415858
Category:
JFET Transistor, JFET
Package:
TO-72
Datasheet:
Datasheet 3D Model
Description:
RF Small Signal Field-Effect Transistor, 1Element, Ultra High Frequency Band, Silicon, N-Channel, Junction FET, TO-72, TO-72, 3Pin
Stock Locations:
Availability:
1,995 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.87

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2N4416A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-72
Polarity	N-Channel
Power Dissipation	300 mW
Drain to Source Voltage (Vds)	35 V
Breakdown Voltage (Drain to Source)	35 V
Breakdown Voltage (Gate to Source)	35 V
Continuous Drain Current (Ids)	15.0 mA
Reverse Breakdown Voltage	35 V
Input Capacitance (Ciss)	4pF @15V(Vds)
Input Power (Max)	300 mW
Power Dissipation (Max)	300 mW
	Show
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
