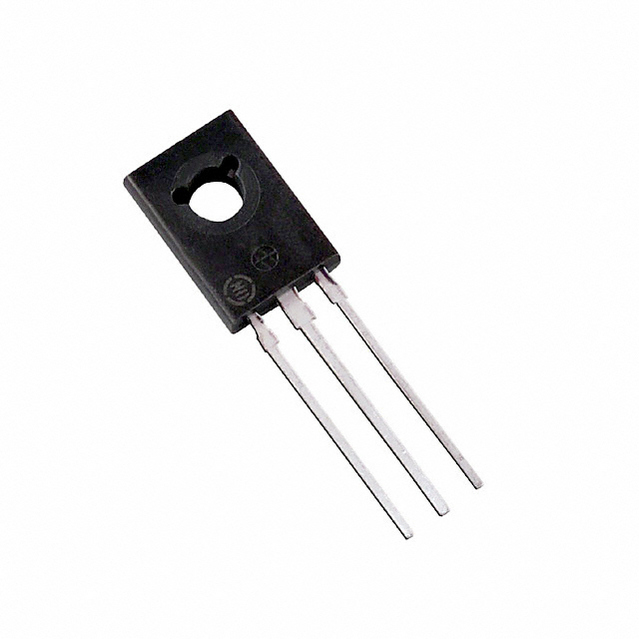

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Power 4 A, 80 V Bipolar NPN Transistors is for use in power amplifier and switching circuits. This transistor has excellent safe area limits and is a complement to PNP 2N5194, 2N5195
Features
---
|
Pb-Free Packages are Available

Show

2N5190 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-126-3
Voltage Rating (DC)	40.0 V
Current Rating	4.00 A
Polarity	N-Channel
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	4A
hFE Min	25 @1.5A, 2V
hFE Max	100
Input Power (Max)	40 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
