Description

4 AMPERE POWER TRANSISTORS PNP SILICON 60 − 80 VOLTS
These devices are designed for use in power amplifier and switching circuits; excellent safe area limits. Complement to NPN 2N5191,2N5192.
Features
•Pb−Free Packages are Available

Show

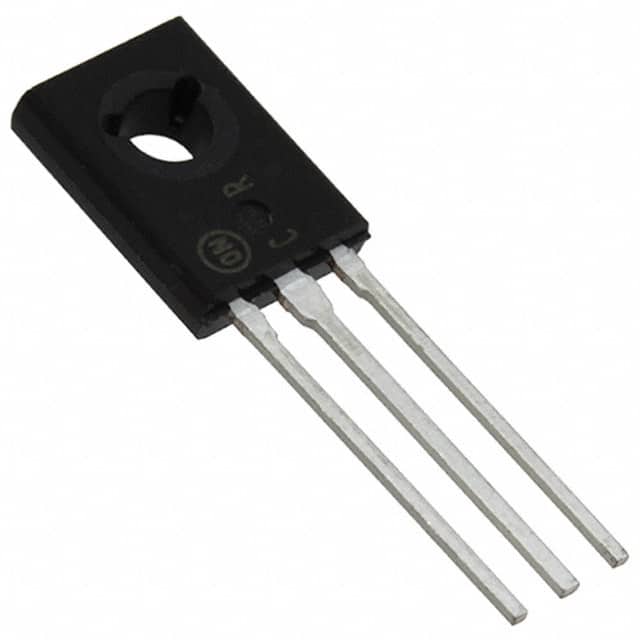

2N5194 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-225-3
Voltage Rating (DC)	-60.0 V
Current Rating	-4.00 A
Polarity	PNP
Power Dissipation	40 W
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	4A
hFE Min	25
hFE Max	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	7.74 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
