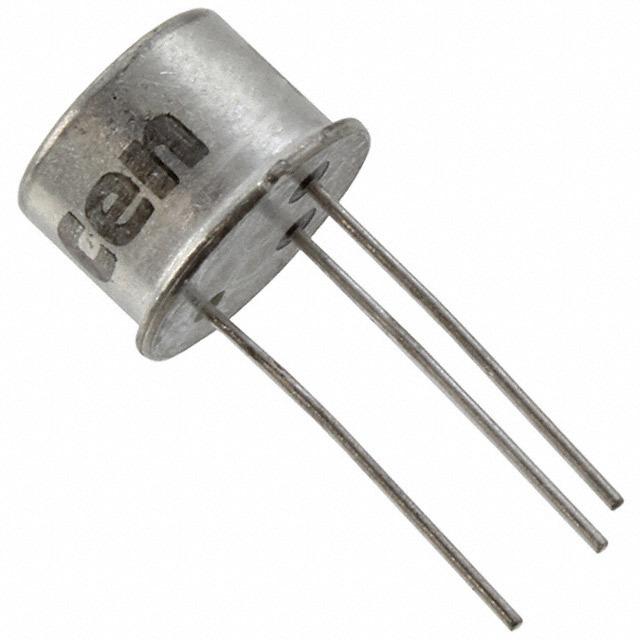

Image is for your reference only,please check specifications for details

2N5322 - Central Semiconductor
Manufacturer:
Central Semiconductor
ManyChip's Part#:
MC75512920
Category:
BJT Transistor, BJT
Package:
TO-39-3
Datasheet:
Datasheet 3D Model
Description:
2N Series 75V 2A PNP Through Hole Silicon Switching Transistor - TO-39
Stock Locations:
Availability:
300 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.68

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

2N5322 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-39-3
Frequency	50 MHz
Polarity	PNP
Power Dissipation	10 W
Gain Bandwidth Product	50 MHz
Breakdown Voltage (Collector to Emitter)	75 V
hFE Min	30 @500mA, 4V
Input Power (Max)	10 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	65 ℃
Power Dissipation (Max)	10000 mW
	Show
Material	Silicon
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
