2SD1859TV2R ROHM Semiconductor - BJT Transistor, BJT

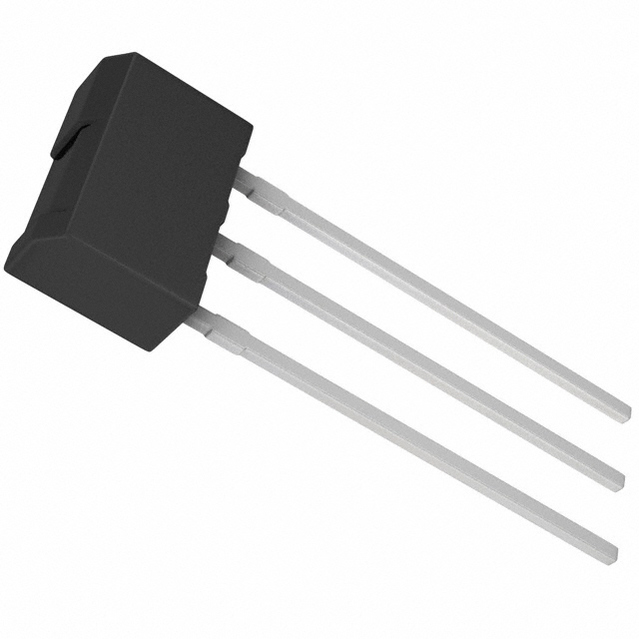

Image is for your reference only,please check specifications for details

Updated at 17/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	SIP-3
Voltage Rating (DC)	80.0 V
Current Rating	700 mA
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	0.7A
hFE Min	180 @100mA, 3V
hFE Max	390
Rating Power (Max)	1 W
Power Dissipation (Max)	1 W
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
