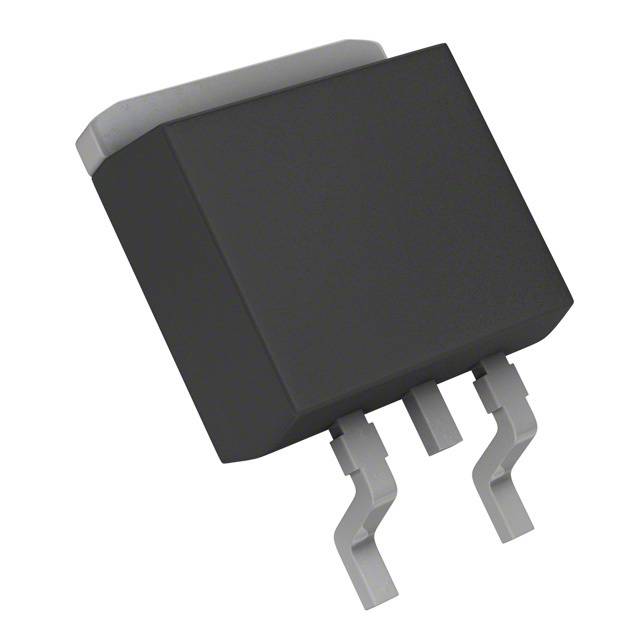

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Structure
- Silicon N-channel MOS FET
- Features
- 1) Low On-resistance.
- 2) Fast switching speed.
- 3) Wide SOA (safe operating area).
- 4) 4V drive.
- 5) Drive circuits can be simple.
- 6) Parallel use is easy.
- Applications
- Switching
2SK2094TL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | TO-252-3 |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 2.00 A |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 0.4 Ω |
| Polarity | N-Channel |
| Power Dissipation | 20W (Tc) |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60.0 V |
| Continuous Drain Current (Ids) | 2.00 A |
| Rise Time | 20.0 ns |
| Input Capacitance (Ciss) | 400pF @10V(Vds) |
| Input Power (Max) | 10 W |
| Power Dissipation (Max) | 20W (Tc) |
| Show | |
| Size-Width | 5.5 mm |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
