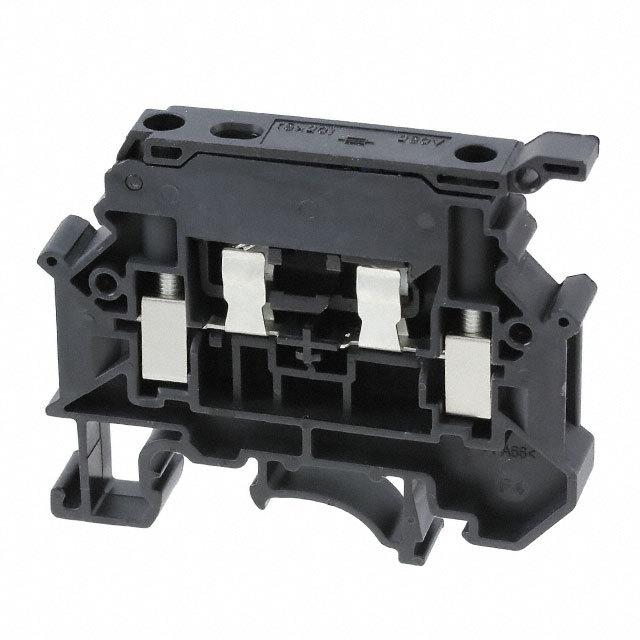

Image is for your reference only,please check specifications for details
- 3000542 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC100629270
-
Category:Terminal Blocks
-
Datasheet:Datasheet 3D Model
-
Description:Модульный блок предохранителей, количество положений: 1, способ подключения: винтовое соединение, сечение: 0,2 мм²–6 мм², AWG: 24–10, номинальный ток: 6,3 А, номинальное напряжение: 500 В, ширина: 8,2 мм, тип предохранителя: G / 5 x 20, тип предохранителя: стеклянный / керамический / ..., тип крепления: NS 35/7,5, NS 35/15, NS 32, цвет: черный
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.57
Updated at 12/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Модульный блок предохранителей, количество положений: 1, способ подключения: винтовое соединение, сечение: 0,2 мм²–6 мм², AWG: 24–10, номинальный ток: 6,3 А, номинальное напряжение: 500 В, ширина: 8,2 мм, тип предохранителя: G / 5 x 20, тип предохранителя: стеклянный / керамический / ..., тип крепления: NS 35/7,5, NS 35/15, NS 32, цвет: черный
3000542 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 2 Contact |
| Wire Gauge | 12AWG ~ 24AWG |
| Current Rating | 6.3 A |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Current Rating (Max) | 6.3 A |
| Voltage Rating | 500 V |
| Operating Voltage (Max) | 500 V |
| Show | |
| Size-Length | 58 mm |
| Size-Width | 8.2 mm |
| Size-Height | 50 mm |
| Housing Color | Black |
| Color | Black |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
