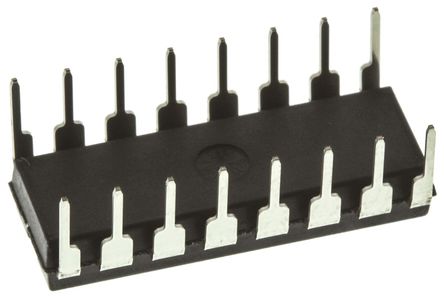

Image is for your reference only,please check specifications for details

PGA205AP - TI
Manufacturer:
TI
ManyChip's Part#:
MC15275030
Category:
Instrumentation Amplifier IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA205AP Instrument Amplifier, 3, 125V, 0.07V/ s, 1MHz, 4.5V to 18V, DIP
Stock Locations:
Availability:
3,155 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 39.06

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA205AP is a general purpose programmable-gain Instrumentation Amplifier offering excellent accuracy. Digitally controlled gain of 1, 2, 4 and 8V/V. Gain is selected by two TTL or CMOS-compatible address lines, A0 and A1. Internal input protection can withstand up to ±40V on the analog inputs without damage. The PGA205 is laser trimmed for very low offset voltage (50µV), drift (0.25µV/°C) and high common-mode rejection (115dB at G=1000). It operate with power supplies as low as ±4.5V, allowing use in battery operated systems.
Precision and versatility
No logic supply required
2nA Maximum low input bias current
5.2mA Typical low quiescent current
Green product and no Sb/Br

Show

PGA205AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	18.0 V
Supply Current	5.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	106 dB
Quiescent Current	5.20 mA
Bandwidth	1 MHz
Slew Rate	300 mV/μs
Gain Bandwidth Product	1 MHz
Gain	8.00 dB
Input Offset Voltage	125 µV
Input Bias Current	500 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	1 MHz
Gain Bandwidth	75 dB
Minimum CMRR Range	75 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	9 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
