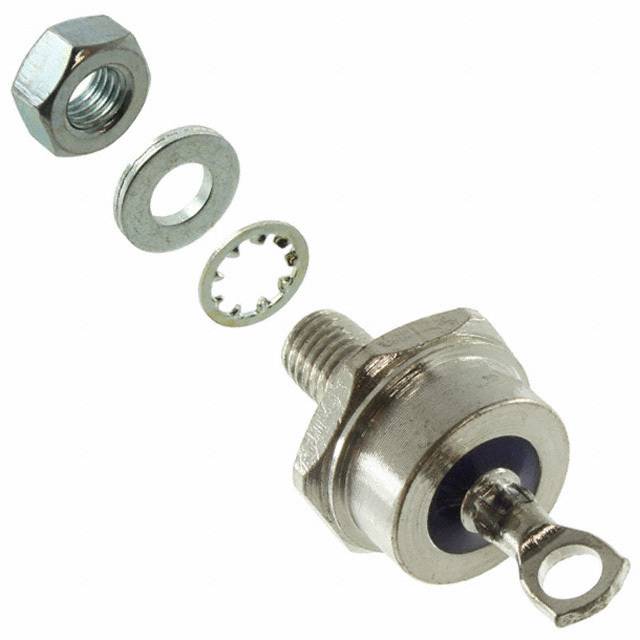

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1N6098 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	2 Pin
Case/Package	DO-203AB
Forward Voltage	700mV @50A
Forward Current	50 A
Max Forward Surge Current (Ifsm)	400 A
Maximum Forward Voltage (Max)	700 mV
Forward Current (Max)	50 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Height	23.18 mm
Operating Temperature	65℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
