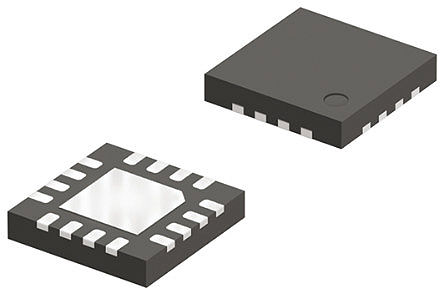

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HMC470LP3E is a 1dB broadband 5-bit GaAs Digital Attenuator which operates between DC and 3GHz. This single positive control line per bit digital attenuator incorporates off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. The attenuator bit values are 1 (LSB), 2, 4, 8 and 16dB for a total attenuation of 31dB. Attenuation accuracy is excellent at ±0.3dB typical step error with an IIP3 of +45dBm. Five TTL/CMOS control inputs are used to select each attenuation state. A single Vdd bias of +5V is required.
- Single control line per bit
- TTL/CMOS compatible control
- ±0.3dB Typical step error
HMC470LP3E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SMD-16 |
| Supply Voltage (DC) | 4.50V (min) |
| Supply Current | 4.4 mA |
| Number of Positions | 16 Position |
| Number of Bits | 5 Bit |
| Power Dissipation | 0.5 W |
| Input Voltage (Min) | 4.5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 500 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Product Lifecycle Status | End of Life |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
