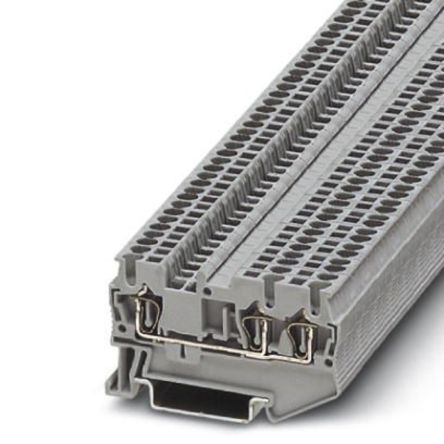

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ST Series Three-Conductor Terminal Blocks
- Spring cage terminal blocks are gaining attention because of their top-entry, speed of termination and push-in bridging systems. The wiring technician has a view of the connection points and the wire ducts can be positioned very close to the rail assemblies. If the screw clamp is not torqued with a power screwdriver, the spring cage is about 10-15% faster. A push-in style jumper is typical and if a dual channel design is chosen, you have a very flexible system to handle chain and multi-position bridging. This results in a lower installed cost.
3031128 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Pin Pitch | 4.2 mm |
| Number of Contacts | 3 Contact |
| Wire Gauge | 14AWG ~ 26AWG |
| Current Rating | 17.5 A |
| Number of Circuits | 1 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 3 Position |
| Current Rating (Max) | 17.5 A |
| Voltage Rating (Max) | 500 V |
| Voltage Rating | 500 V |
| Operating Voltage (Max) | 500 V |
| Show | |
| Size-Length | 60.5 mm |
| Size-Width | 4.2 mm |
| Size-Height | 44 mm |
| Housing Color | Gray |
| Color | Gray |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
